3.2V 314Ah CORNEX BATTERO LiFePO4 Cells with 48V 200A BMS DIY Kits Box Set - Battery Finds
3.2V 314Ah CORNEX BATTERO LiFePO4 Cells with 48V 200A BMS DIY Kits Box Set
3.2V 314Ah CORNEX BATTERO LiFePO4 Cells with 48V 200A BMS DIY Kits Box Set - Image 2
3.2V 314Ah CORNEX BATTERO LiFePO4 Cells with 48V 200A BMS DIY Kits Box Set - Image 3
3.2V 314Ah CORNEX BATTERO LiFePO4 Cells with 48V 200A BMS DIY Kits Box Set - Image 4
3.2V 314Ah CORNEX BATTERO LiFePO4 Cells with 48V 200A BMS DIY Kits Box Set - Image 5

3.2V 314Ah CORNEX BATTERO LiFePO4 Cells with 48V 200A BMS DIY Kits Box Set

2,110.00$

*The price includes 1pcs DIY kit box and 16pcs 3.2V 314Ah battery cells, which is more favorable than purchasing separately

  • All-in-One DIY Kit – Save Time & Hassle
    Includes both the battery box and 3.2V 314Ah cells. No need to search for compatible enclosures or BMS separately – ready to assemble.
  • Cost-Effective Bundle – More Value for Money
    Bundled pricing is lower than buying individual components. Reduces extra shipping and sourcing costs – a truly economical choice.

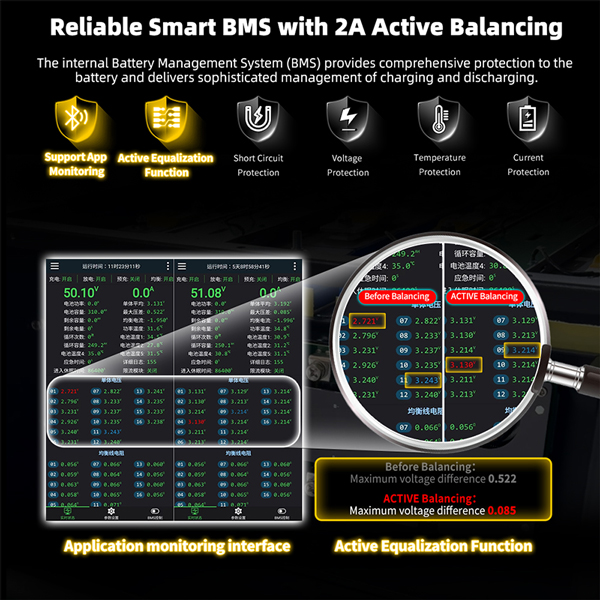

  • Pre‑installed 200A BMS – High Power Output
    Comes with a GoKWh 48V 200A intelligent BMS. Supports continuous high current for RVs, home energy storage, off-grid systems, etc.
  • Compatible with 3.2V 314Ah LiFePO₄ Cells
    Uses premium A-grade prismatic cells. 16 cells in series deliver ~48V / 340Ah (approx. 17kWh) with long cycle life and excellent safety.
Secure Checkout
WORRY FREE SHOPPING
Free shipping
Secure payment
Reliable warranty

Buying together makes things easier!

  • No need for size comparisons – the GoKWh 48V 320Ah DIY Kits box perfectly fits the size of 314Ah battery cells.
  • BMS system compatibility – CORNEX and BATTERO 3.2V 314Ah battery cells have undergone multiple assembly and testing processes and are compatible with 200A BMS systems.
  • More cost-effective – compared to buying separately, buying together saves you money and time!

How to install 3.2V 314Ah LiFePO4 Cells with 48V 200A BMS DIY kits Box

We will partially pre install 48V 320Ah DIY kits, such as BMS and sampling parts, to reduce some complex steps during installation. Watch the video and we will show you every detail and step of installing DIY Kits Box, making it easier for you to install – even beginners can do it!

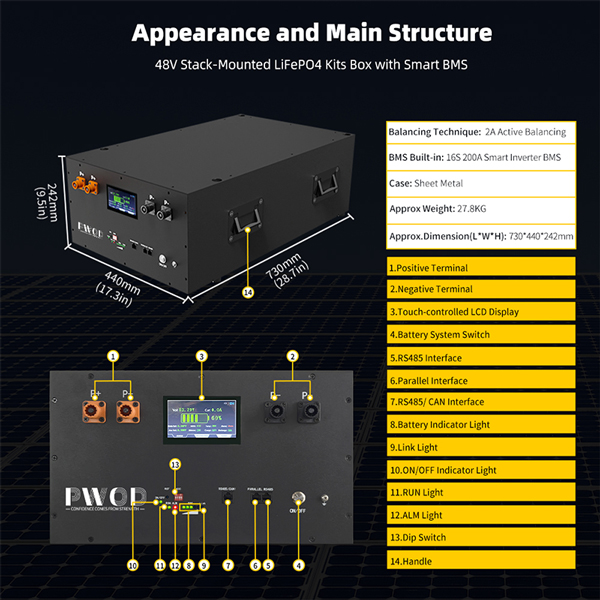

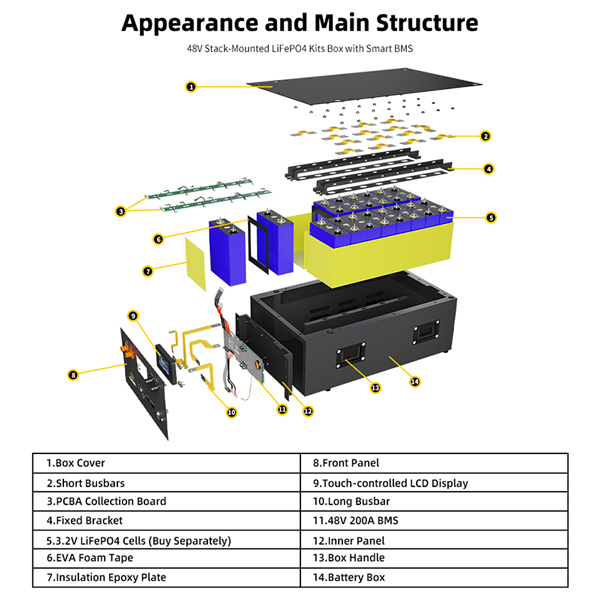

48V DIY KITS BOX



3.2V 314Ah LFP Cells

📋 Specification

Item CORNEX BATTERO
Model Cornex PF173-314A BATTERO QC-0B1-72174L4-BE
Cell Grade Brand New Grade A Cell Brand New Grade A Cell
Chemistry Lithium Iron Phosphate(LiFePO4 or LFP) Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal Capacity 314Ah 314Ah
Nominal Voltage 3.2V 3.2V
Nominal Voltage 2.5V–3.65V 2.5V–3.65V
AC Impedance Resistance(1KHz) 0.19±0.05 mΩ ≤0.25 mΩ
Weight 5.60±0.084Kg 5.50±0.15Kg
Dimensions L174*W71.7*H207 mm L174*W72*H207 mm
Cycle Life ≥6000 Cycles ≥8000 Cycles
Residual Capacity loss Per month ≤3.0% Per month ≤3.0%
Charging Temperature 0℃~60℃ 0℃~60℃
Discharging Temperature -20℃~60℃ -40℃~60℃
